Brief introduction

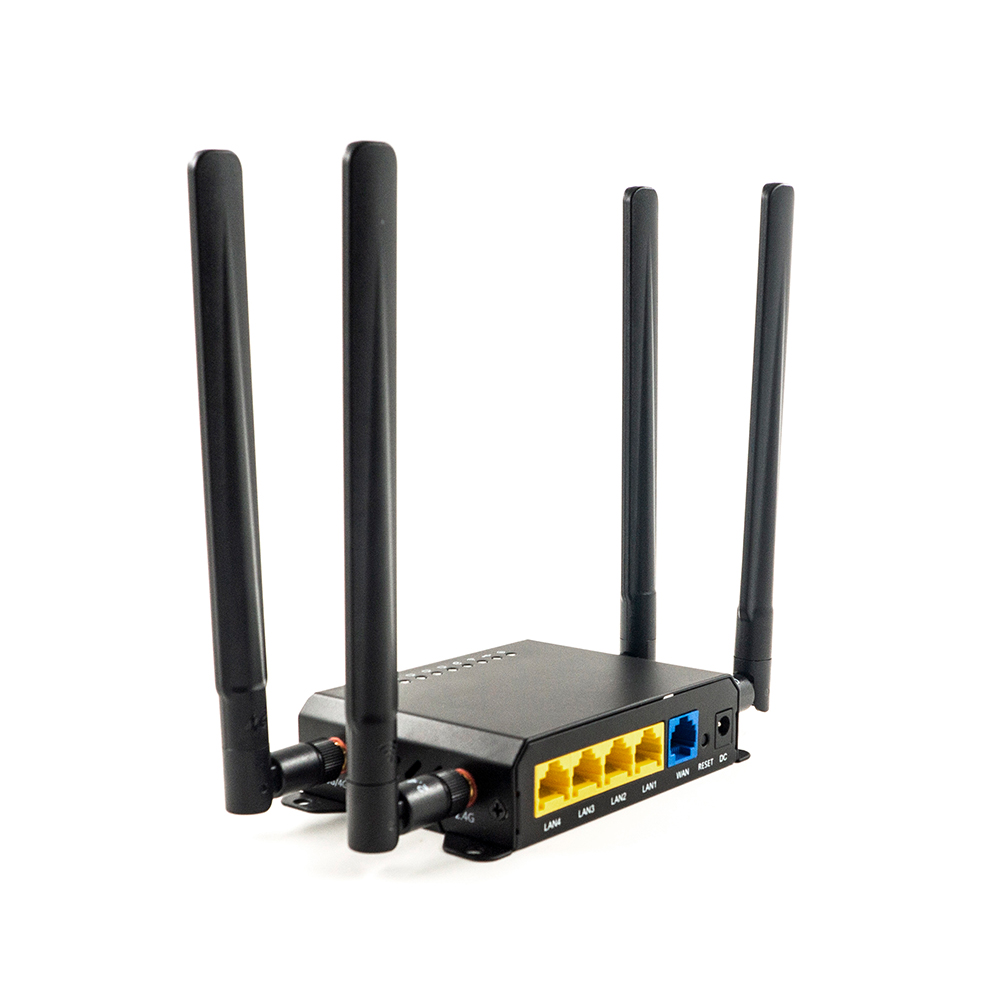

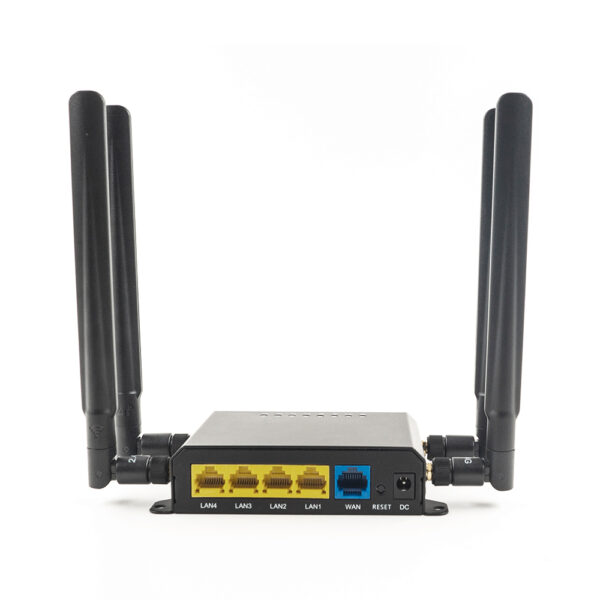

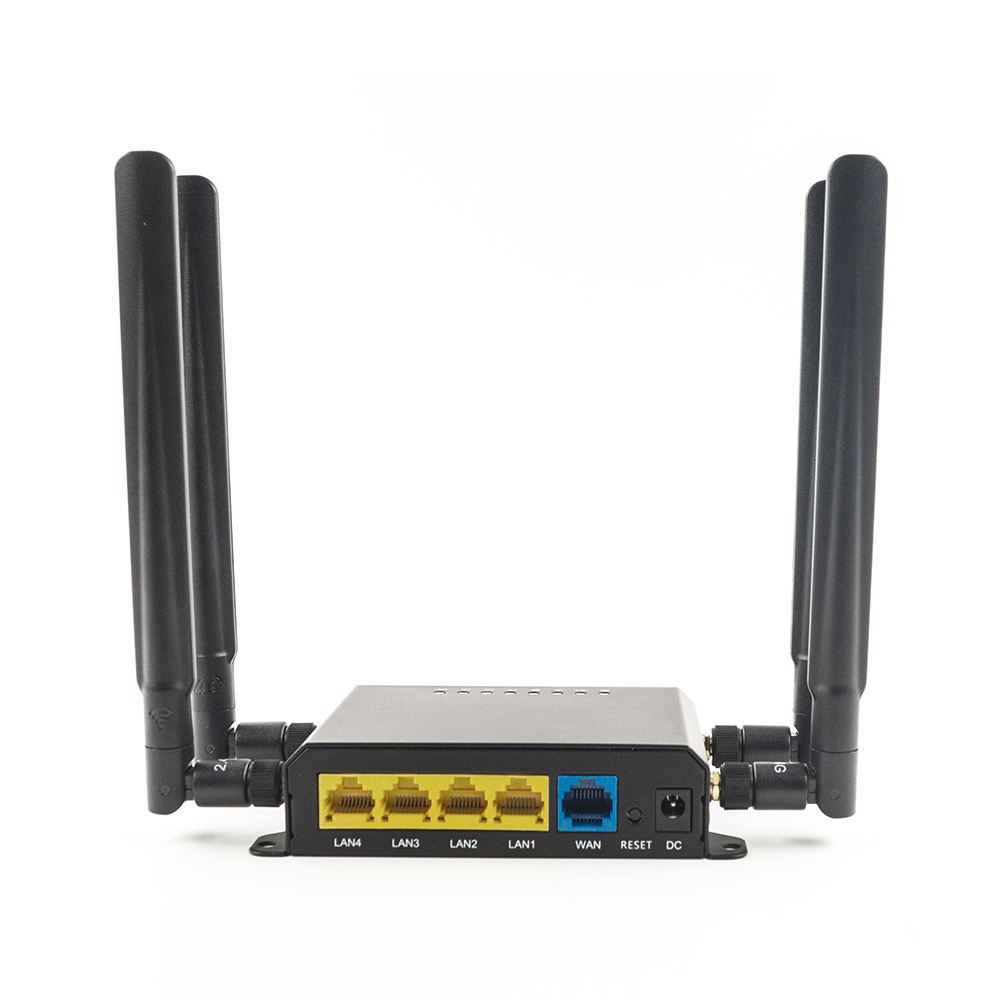

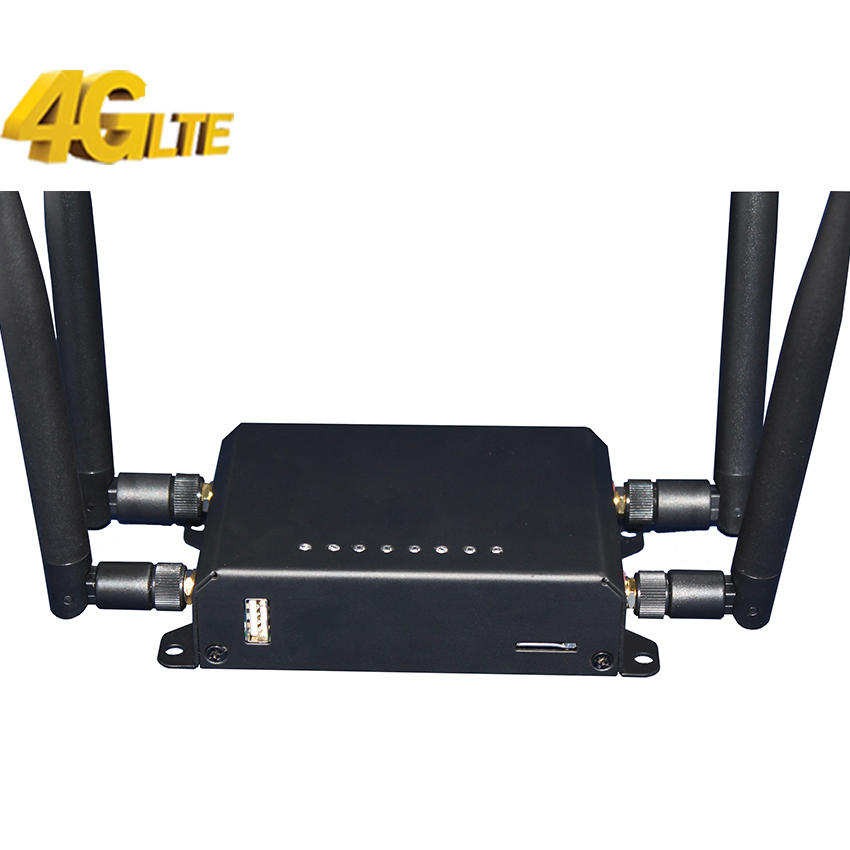

A very popular small size metal case 4g lte wifi openwrt router
If you are looking for small size IoT router with openwrt supported? For application like Smart express cabinet, Charging pile, Vending machine, ATM machine, this router will be the best choice.
Product Feature
- Support 80.11AC/802.11A/802.11N/802.11G/802.11B network protocol, the max transmission rate could be 1200Mbps(2.4G 300Mbps+ 5G 867Mbps)
- Support 802.113/802.11U protocol, 5* 10/100M bps Auto MDI/MDIX
- 1 USB 2.0 date interface

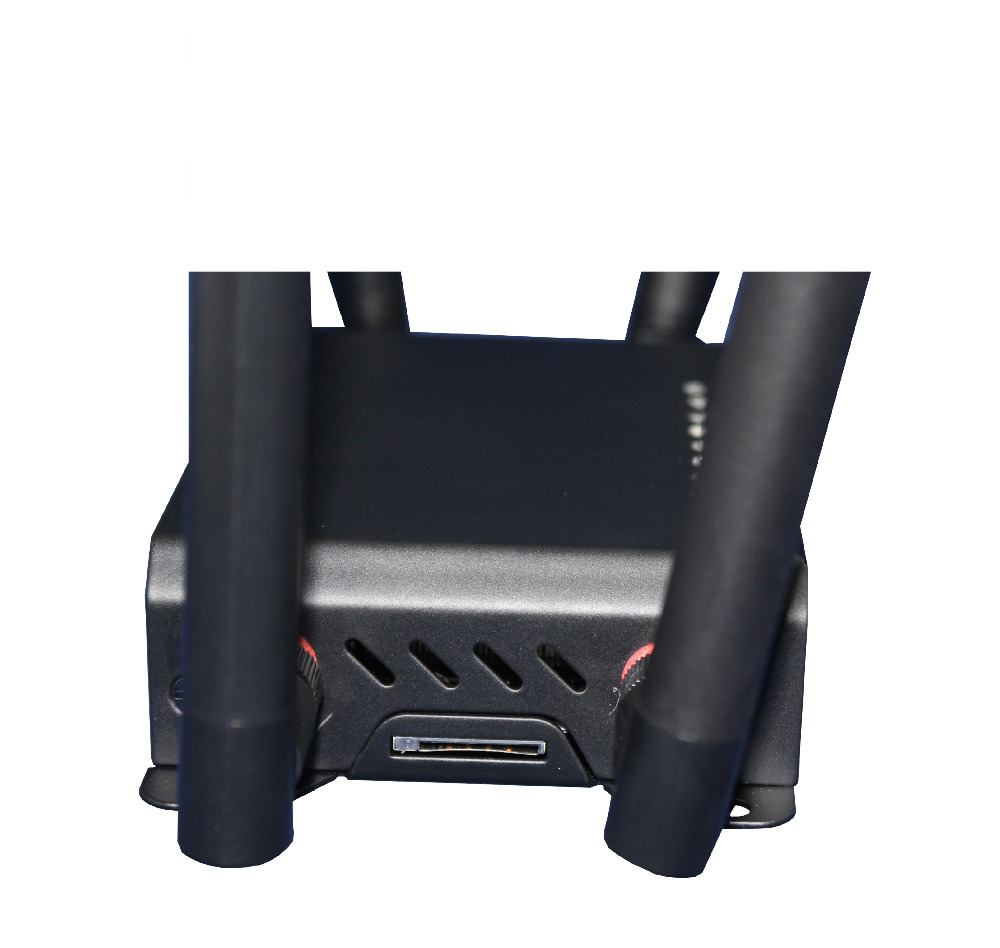

- 1 Micro SD Card Slot
- Support 3G/4G
- Many kinds of encryptions to protect your data transmission;
- There is one mini-PCIe slot on the board, can be choosed to install either 5.8G wifi module or 3G 4G LTE module.
| Hardware | ||
| Main Chipset | MT7628AN | |
| RAM | DDR2 128MB (MAX DDR2 256MB) | |
| SPI FLASH | 16MB (MAX 32MB) | |
| Protocol | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac, IEEE802.11a IEEE 802.3, IEEE 802.3u |
|
| RT Power | 802.11b 18dBm±2dBm;
802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm; 802.11ac depends on the 11AC module; |
|
| Reception Sensitivity | 802.11b: -83dBm@10% PER
802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER 802.11ac: depends on the 11AC module; |
|
| Work Channel | 2.4GHz choose: 1-13
5GHz choose: 149, 153, 157, 161, 165 |
|
| Wireless Rate | Max 1200Mbps (depends on the 11AC module) | |
| Work Frequency | 2.4GHz (can choose to support 5.8GHz too, then 4G is not available) | |
| Antenna | 2*detachable wifi antenna, 2* detachable 4G antenna | |
| Interface | 1*PCI-E slot (To install 11ac or 4G module)

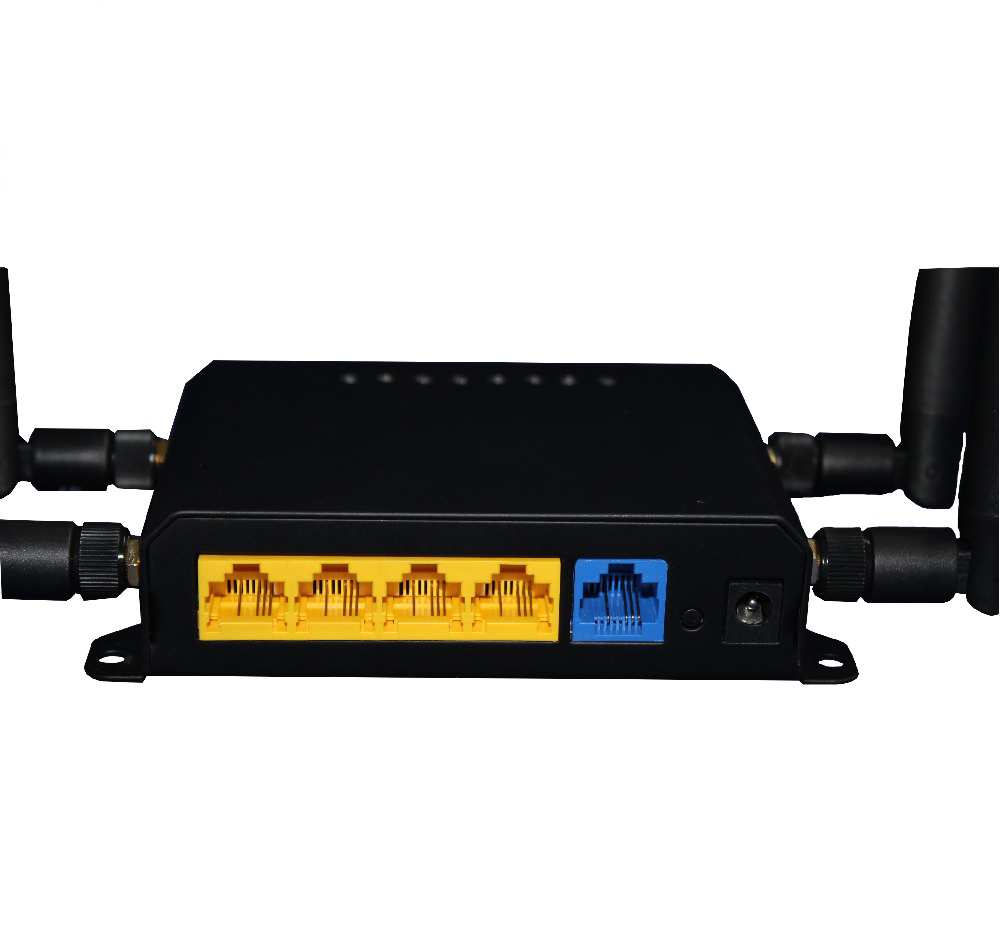

1*SIM card slot 1*USB 2.0 port 1*Micro SD card slot 1*10/100M WAN port (Auto MDI/MDIX) |
|
| LED | Power,mini-PCIE module , 2.4G,WAN,LAN1,LAN2,LAN3,LAN4 | |
| Dimension (L*W*H) | 141*85*26MM | |
| Others | ||
| Work Environments | Operating Temperature: 0℃ ~ 60℃; Storage Temperature: -60℃~ 70℃;Operating Humidity: 10%~90% non-condensing Storage Humidity: 10%~90% non-condensing |
|
| Other accessories | 1x RJ45 cable, 1x 12V 1A power adapter
|
|
Warm reminder
When insert or take off sim card, need be power off status, or have risk to burn off the sim card.
Insert sim card with the correct direction which is showed on the enclosure.
