Description
RJ11 modem router 3g 4g lte openwrt 300mbps 2.4g wifi
Brief Introduction
M2815S is a rj11 modem router for home use. It can access the Internet through 4G mobile communication dial-up, and then share the Internet network through wireless WiFi 4 and 100Mbps wired LAN. At the same time, it can also make calls through the RJ11 interface to realize VOIP function.
- Adopt MT7628NN solution, MIPS24KEc architecture CPU, main frequency up to 580MHZ
- MT7628NN chip integrates 2.4G WIFI function, speed up to 300Mbps
- Equipped with 64MB DDR2 and 8MB Nor Flash
- 4 *100M adaptive LAN ports, support automatic flip (Auto MDI/MDIX)
- Support “one-key flashing mode”, that is, long press the reset button to start the machine to enter the rescue flashing mode
- 1 *RJ11 interface, can directly connect to the phone to realize the call function
- External NANO SIM card (small card) interface, support SIM/USIM card
- Built-in battery, can work normally even in power outage
Specification

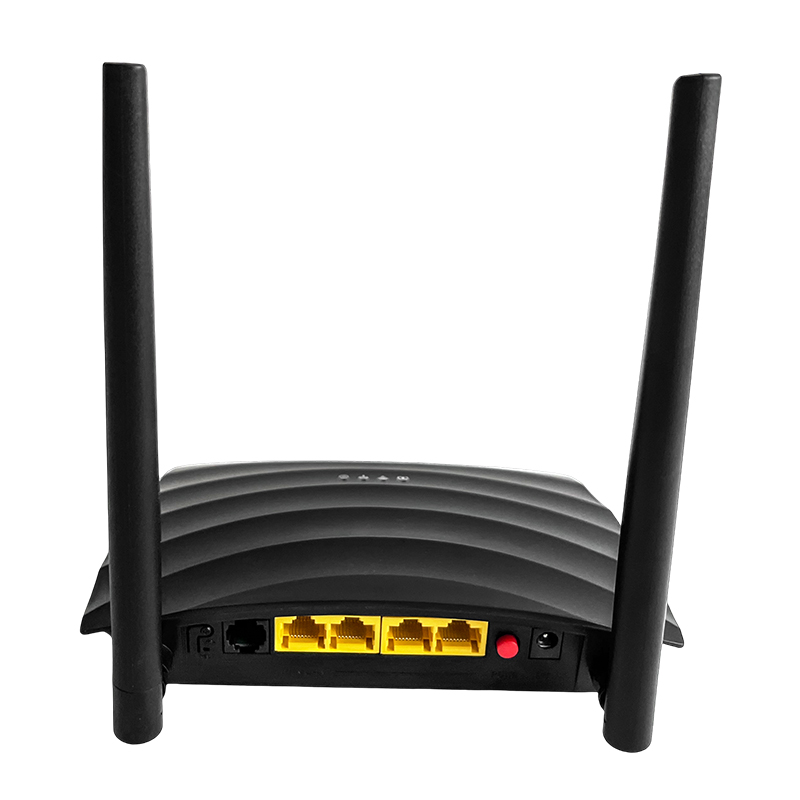

| Network port | 1*WAN and 3*LAN port 100Mbps. Supports automatic flip (Auto MDI/MDIX)
Compliant with IEEE 802.3/802.3u |
| SIM card slot | 1*NANO SIM，Support SIM/USIM |
| Power interface | DC5.5*2.1MM interface |
| RJ11 port | 1*RJ11 port，support VOIP |
| Button | 1*reset button，1*WPS，1*power on/off button |
| Antennas | 2*Built-in omnidirectional 5dbi 2.4G antennas |
| 2 *external omnidirectional 5dbi 4G antennas |

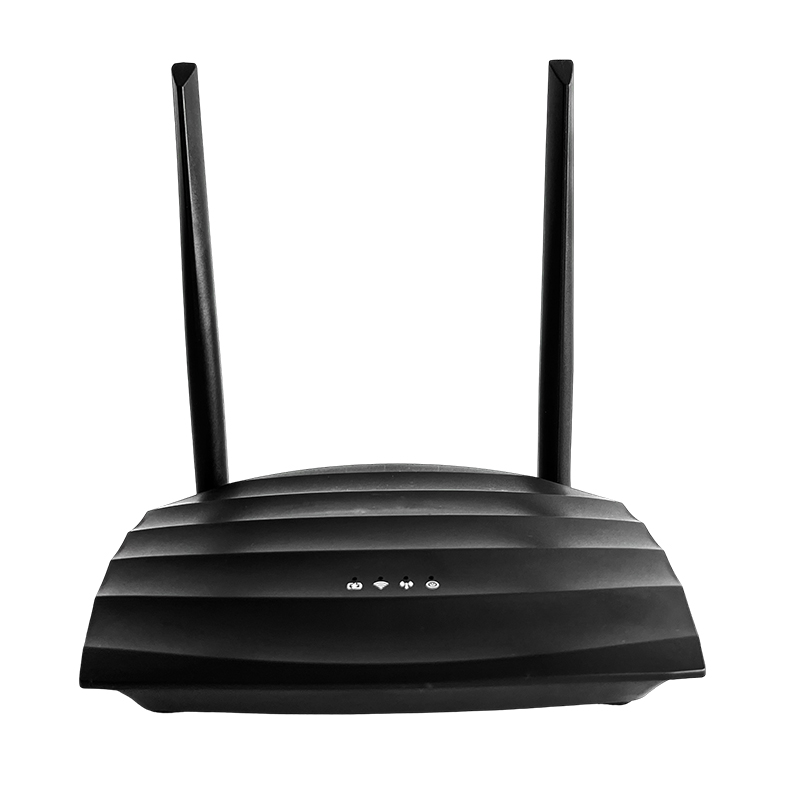

LED light definition
| Power LED | Green when powered on |
| 4G LED | 4G dial-up successful, flashing |
| 2.4G LED | The light is always on when the 2.4G WIFI function is turned on. The light flashes when there is data communication in 2.4G WIFI. |
| Battery LED | The green light is on when charging. The light is off when charging is complete. The red light is on when the battery is low |
