Description
Modem 5g router 3600Mpbs wifi 6 4g lte wireless wifi openwrt
Brief Introduction
- Adopt Qualcomm IPQ8072A chipset solution, Quad core Arm Cortex A53s CPU, the main frequency is up to 2.2 GHz
- Adopt independent WiFi chip, 2.4G is qcn5024, 5.8G is qcn5054
- 4G rate up to 1147Mbps, 5.8G rate up to 2402Mbps, 2.4G&5.8Gboth supports MU-MIMO

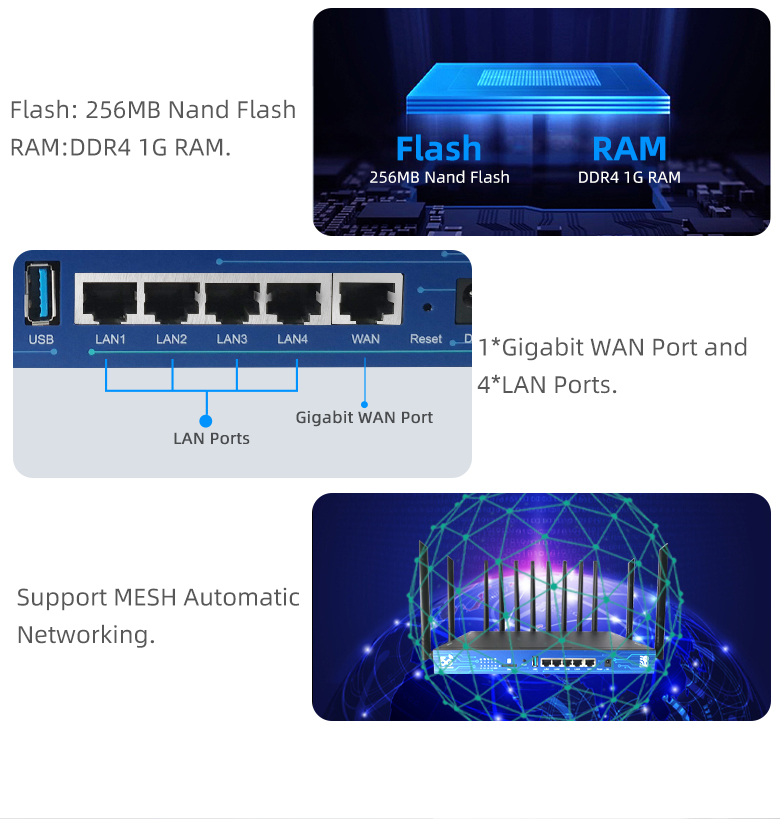

- Large RAM 1GB DDR4 with 8MB nor flash and 256MB Nand flash.
- 1*WAN, 4*LAN all 1000Mbpsadaptive network ports, support automatic flip (Auto MDI/MDIX)
- Built-in M.2 standard interface, can be used to connect 5G mobile communication module.
- External standard SIM card interface, support SIM/USIM card
- 5Gmodule power supply is independently controlled by GPIO
- IPQ8072 withwatchdog function, which can reboot automatically in case of crash.
- External high gain omnidirectional antenna, wireless signal 360 degrees without dead angle.
- Support MESH automatic networking when multiple products are used at the same time.
Specification
| Ethernet Port | 1*WAN port,1000Mbps supports auto flip (Auto MDI/MDIX)
Compliant with IEEE 802.3/802.3u/802.ab |
| 4*LAN ports,1000Mbps support auto flip (Auto MDI/MDIX)
Compliant with IEEE 802.3/802.3u/802.ab |
|
| SIM card Interface | 1*Stand sim card slot, support SIM/USIM |
| Button | 1*Reset,1*Mesh |

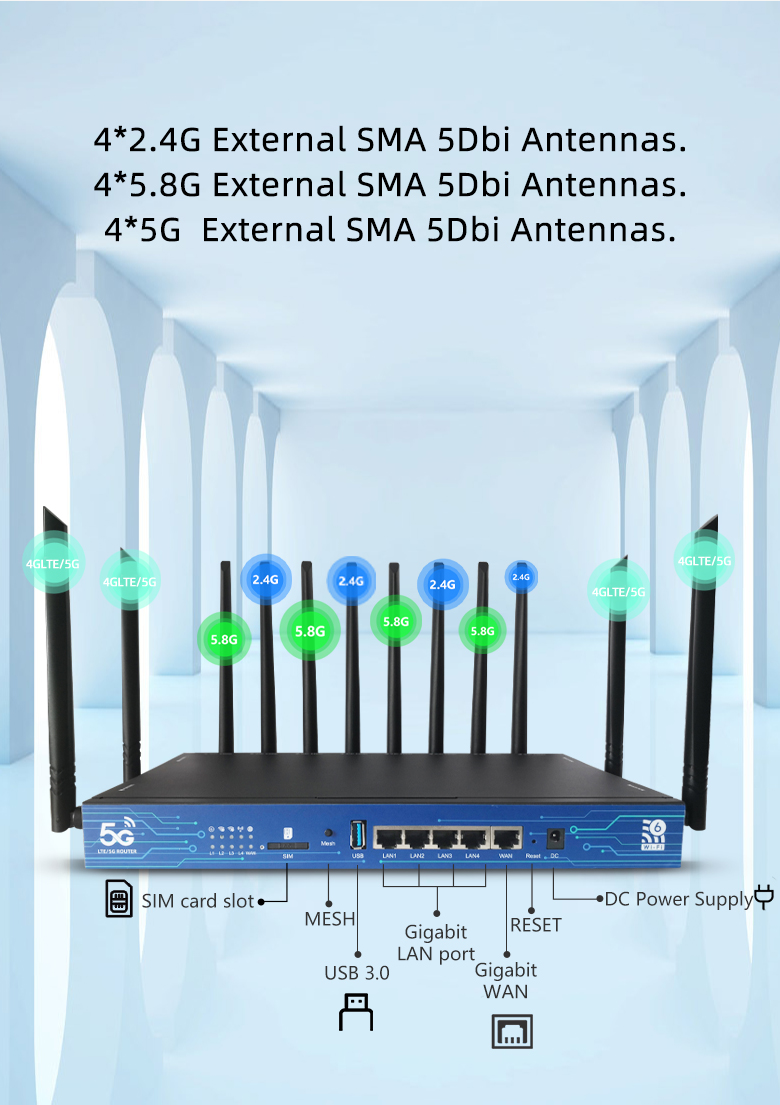

| Antennas | 4* external omnidirectional 5dbi 2.4G antennas
4* external omnidirectional 5dbi 5.8G antennas
|
| 4*external omnidirectional 5dbi 5G mobile communication antennas,Compatible with 4G / 3G band. | |
| M.2 Interface | Built-in M.2 slot. It supports USB3.0 bus and can be used to expand 5g module. |
This Modem 5g router is a little heavy and large, but looks very high quality.
