Description
Brief Introduction
M2805S adopts MT7628NN program, is a low cost sim card wifi openwrt 4g lte router
The main frequency is up to 580MHZ
Equipped with high-speed SPI Flash, provides stable 300Mbps 2.4G wireless WIFI network
Built-in 4G module, supports high-speed 4G Internet access.
Provides rich hardware interfaces, including three 10 / 100M adaptive Ethernet interfaces, SIM interfaces, and DC interfaces
IEEE802.11n / g / b protocol, using 2×2 MIMO architecture, wifi rate up to 300Mbps, two external 5dbi antennas, two 4G antennas.
In open air, the theoretical coverage radius is greater than 50 meters, and the theoretical capacity is 30 meters.
If you just want to connect the router with local broadband in WAN port, have a look at our another openwrt wifi router M2001S
Hardware Specification
| Hardware | |
| Main Chipset | MT7628NN/580MHZ |
| SPI FLASH | 8MB (MAX 32MB) |
| Protocol | IEEE 802.11n.IEEE 802.11g.IEEE 802.11b.IEEE 802.3u |
| RT Power | 802.11b 18dBm±2dBm;
802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm;
|
| Wireless Rate | Max 300Mbps |
| Work Frequency | 2.4GHz |
| 4G | LTE FDD B1/B3/B5/B7/B8/B20 TDD B38/B40/B41 |
| Antenna | 2* 5dBi wifi antenna, 2* 5dBi 4g antenna |

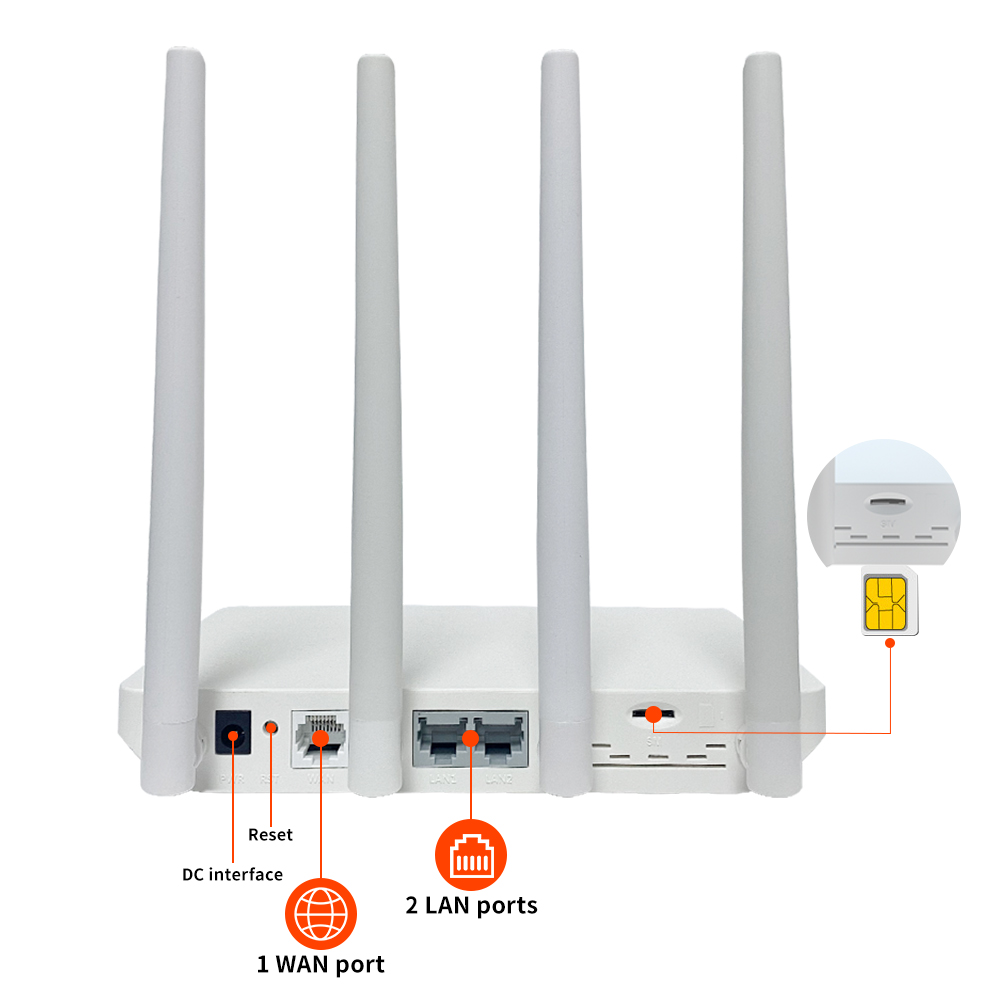

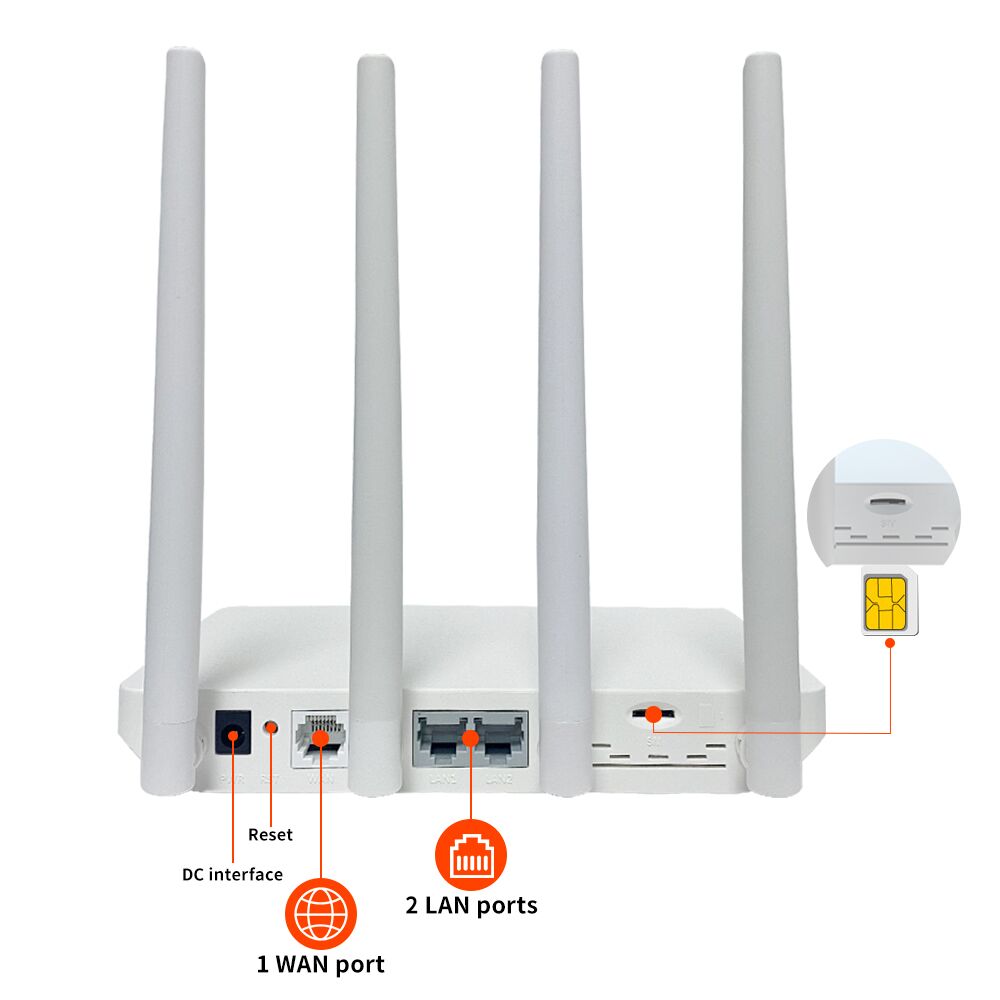

| Interface | 1*10/100M WAN port（Auto MDI/MDIX） 2*10/100M LAN port（Auto MDI/MDIX） |
| LED | Power, 4G, wifi |
| Button | Reset |
| Power Adapter | DC 12V 1A |
| Other accessories |
Power adapter, network cable
|
