Description
industrial 4g router with sim slot
Brief Introduction
An industrial 4g router, used for data transmission services of industry users, supports transparent data transmission, access to the Internet through 4G mobile communication dial-up or 100Mbps WAN port dial-up, and then share the Internet network through wireless WiFi 4 and 100Mbps wired LAN .
Specification

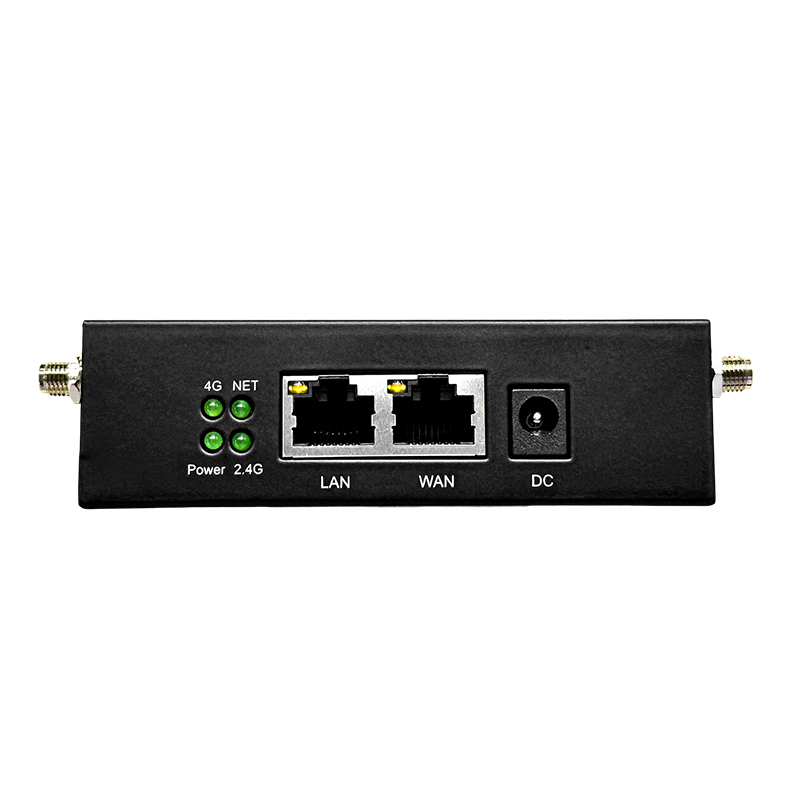

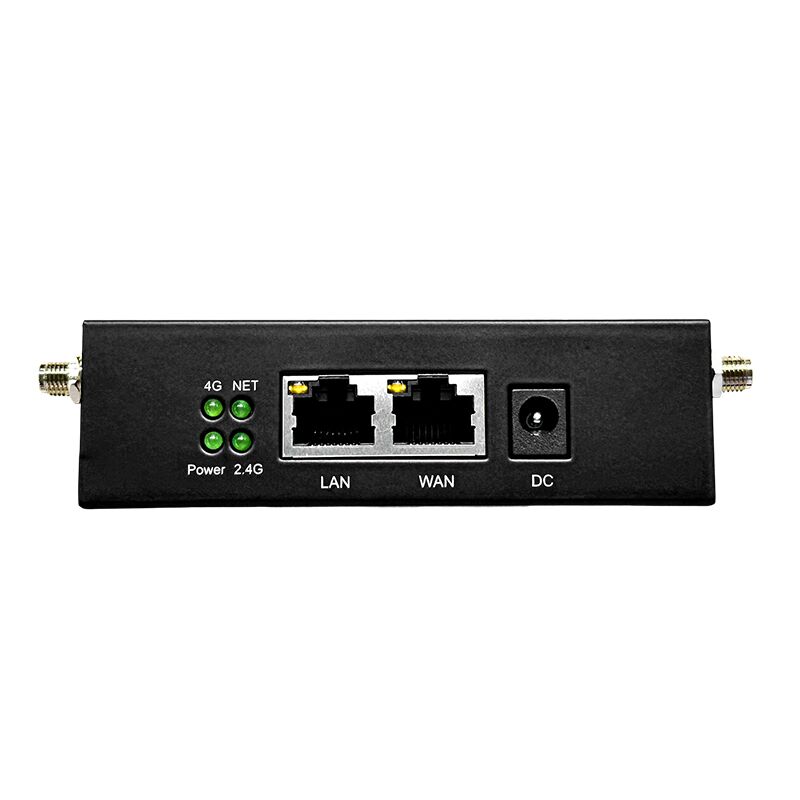

| Network ports | 1 WAN port, 100Mbps support auto flip (Auto MDI/MDIX)
Compliant with IEEE 802.3/802.3u |
| 1 LAN port, 100Mbps supports auto flip (Auto MDI/MDIX)
Compliant with IEEE 802.3/802.3u |
|
| SIM card slot | SIM card interface 1 standard SIM card (large card) interface, support SIM/USIM |
| Power port | DC5.0*2.1MM |
| Button | 1* reset button |

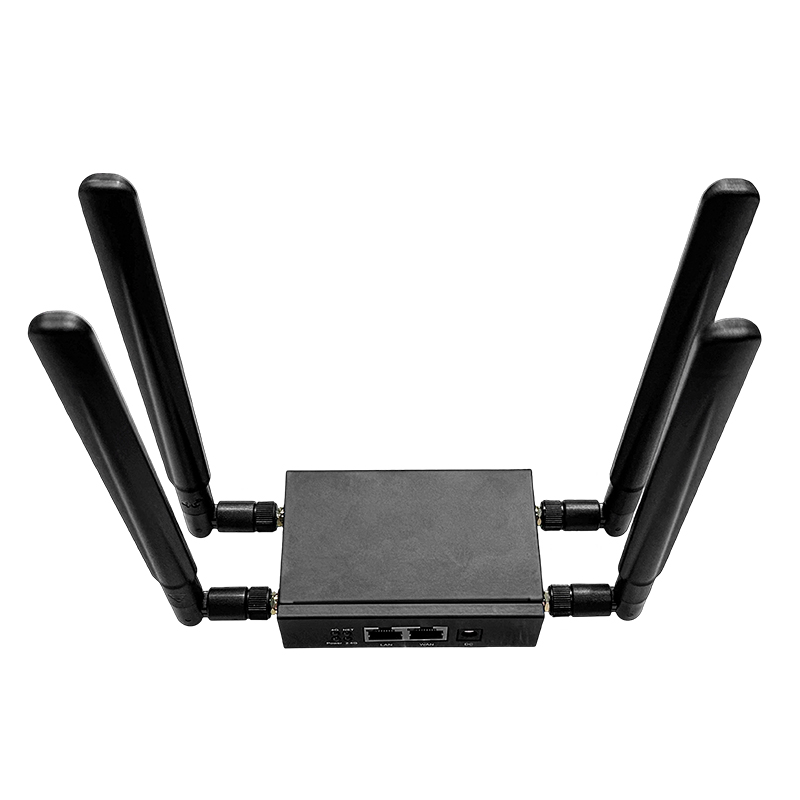

| Antenna | 2 external 2.4G antennas |
| 2 external 4G mobile communication antennas, compatible with 3G/2G mobile data communication | |

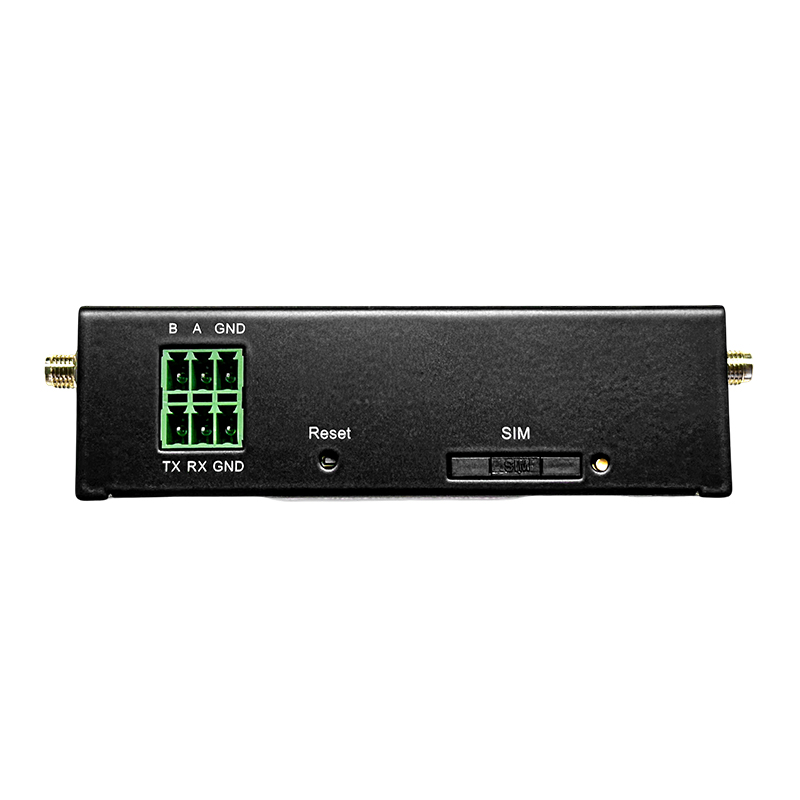

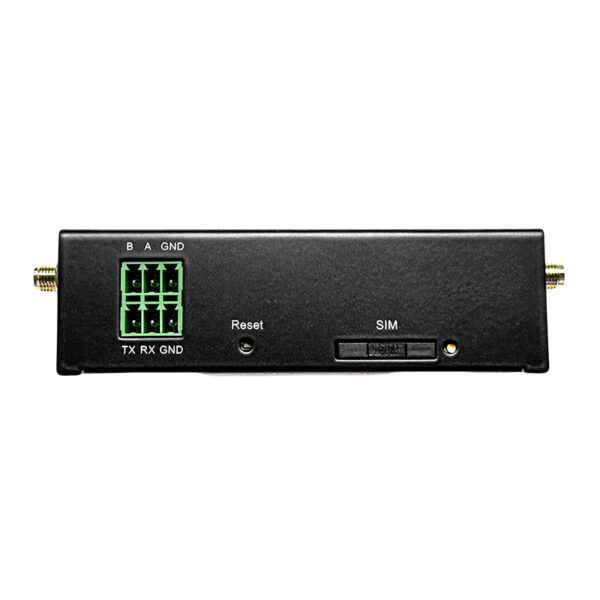

| Connector | 6 PIN connector, this connector is RS232 and RS485 communication interface |
| Processor | MT7628DA MIPS24KEc architecture CPU, the main frequency is up to 580MHZ |
| 2.4G WIFI Chip | MT7628DA integrates 2.4G WIFI function
IEEE 802.11n/g/b, maximum rate 300Mbps |
| RAM | DDR2 64MB, Does not support custom memory size |
| Flash | Nor Flash 16MB |
| Not support NAND Flash |
Key Features
Using MT7628DA solution, MIPS24KEc architecture CPU, the main frequency is up to 580MHZ
MT7628DA chip integrates 2.4G WIFI function, the rate is up to 300Mbps
MT7628DA chip integrates 64MB DDR2, with 8MB Nor Flash
1WAN, 1LAN full 100M adaptive network ports, support auto flip (Auto MDI/MDIX)
Has one RS232, one RS485 serial communication interface, support anti-static and anti-surge design
Support 9-32V power supply, meet industrial power requirements, support anti-static and anti-surge design
Support “one-key flashing mode”, that is, long press the reset button to turn on the machine to enter the rescue flashing mode
Built-in mini-PCIE standard interface, which can be used to connect 4G mobile communication module
External standard SIM card interface, support SIM/USIM card
