4g mifi router pocket wifi

Description

4g mifi router lte wifi with battery

Weight：27g

Size： L*W*H=96MM*54MM*12.5MM

Color: White

Brief Introduction

1. Adopting Qualcomm 9X07 solution, Wi-Fi wireless rate 150Mbps

2. Wireless standard: 802.11b/g/n 20MHz/40MHz

3. External MICRO SIM card interface, supports SIM/USIM card, compatible with 1.8/3.3V

4. Built-in high-gain omnidirectional antenna

5. Buttons: power on/off, reset

6. Antennas: 2* internal 4g antennas, 1*internal wifi antenna

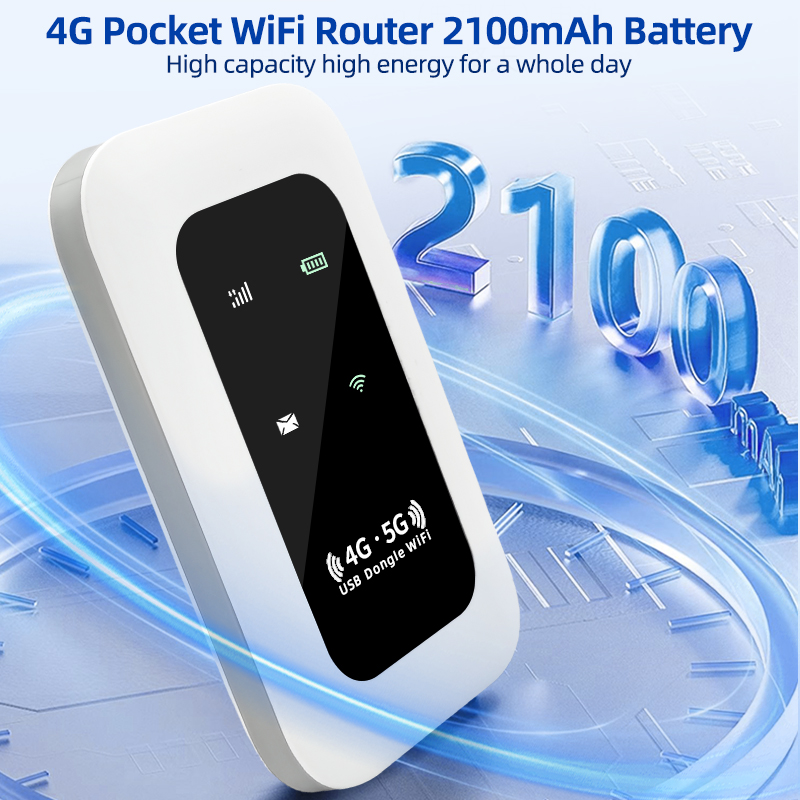

7. Battery: 2100mAh

8. USB port: Type-C

4G frequencies supported (CAT4)

LTE-FDD:B1/B3/B5/B7/B8/B20/B28

LTE-TDD:B38/B40/B41

WCDMA:B1/B5/B8

LTE-FDD DL: 150Mbps, UL: 50Mbps
LTE-TDD DL: 130Mbps, UL: 35Mbps

Hardware parameters

Processor: MDM9607

2.4G WIFI chip: RTL8189ES,maximum wifi speed up to 150Mbps

Flash/RAM； NOR FLASH 128MB， 512MB RAM

LED lights

1. Power indicator
2. Network indicator
3. WIFI indicator

The blue light flashes when the device is turning on

The green light lights when the device is turned on

After the device is turned on, the green light flashes which means it’s connected to the network signal

A very popular 4g mifi router, it’s different from the common desktop 4g router, it’s portable, very convenient to provide wifi at different places!
