Description

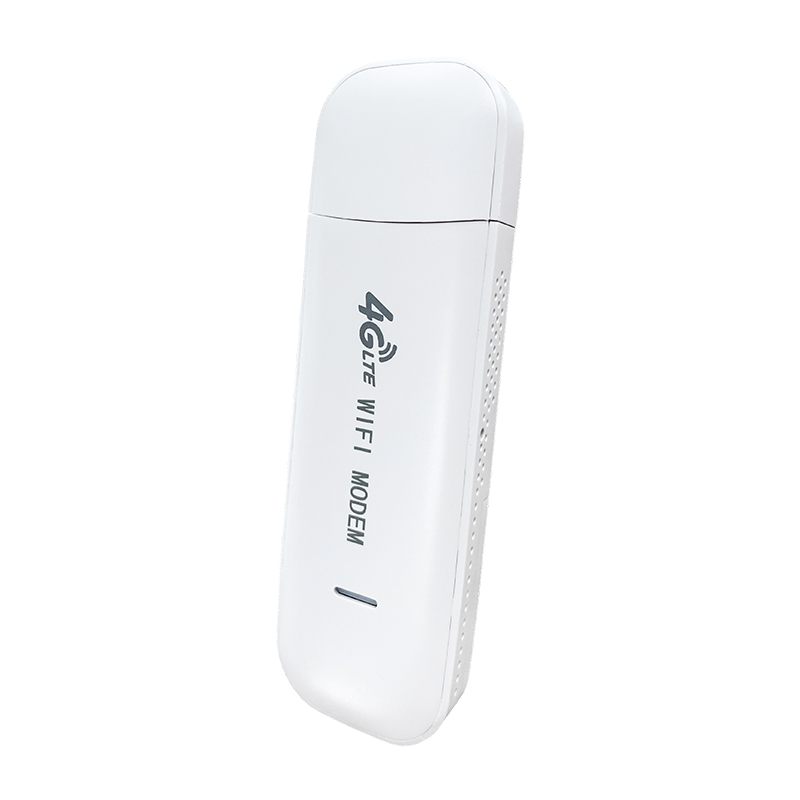

4G lte USB dongle
Brief Introduction

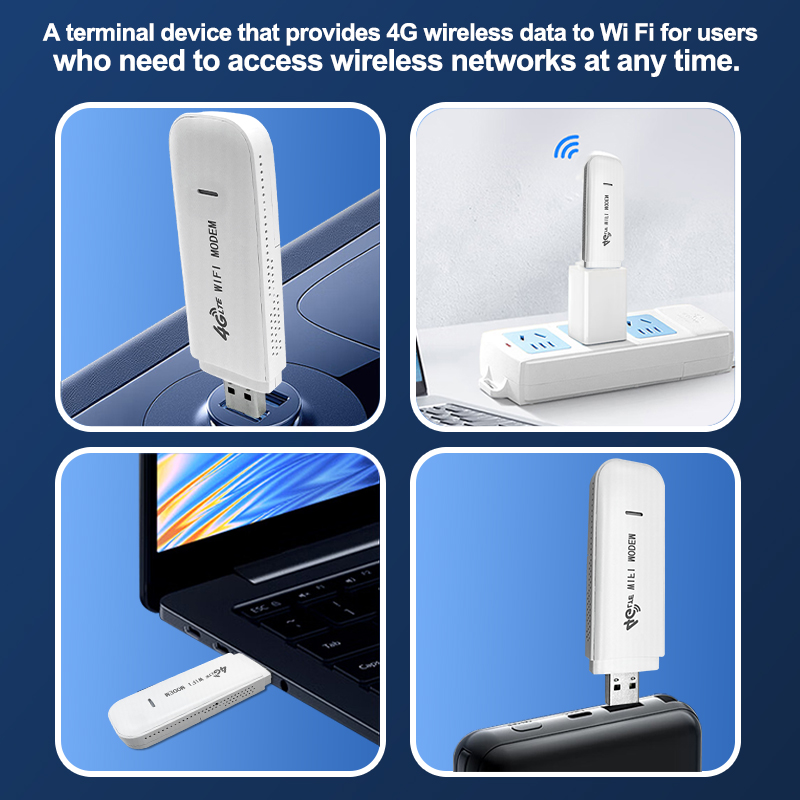

4G lte USB dongle, It accesses the Internet through 4G mobile communication dial-up, and then shares the Internet network through wireless WiFi. It provides 4G data to Wi-Fi terminal equipment for users who need to access wireless networks at any time. The device supports TDD, FDD, and WCDMA network standards. By inserting a SIM card, 4G signals can be converted into WiFi signals. No matter when and where, your mobile phone, laptop, and Pad can enjoy the world of wireless Internet.
Specification

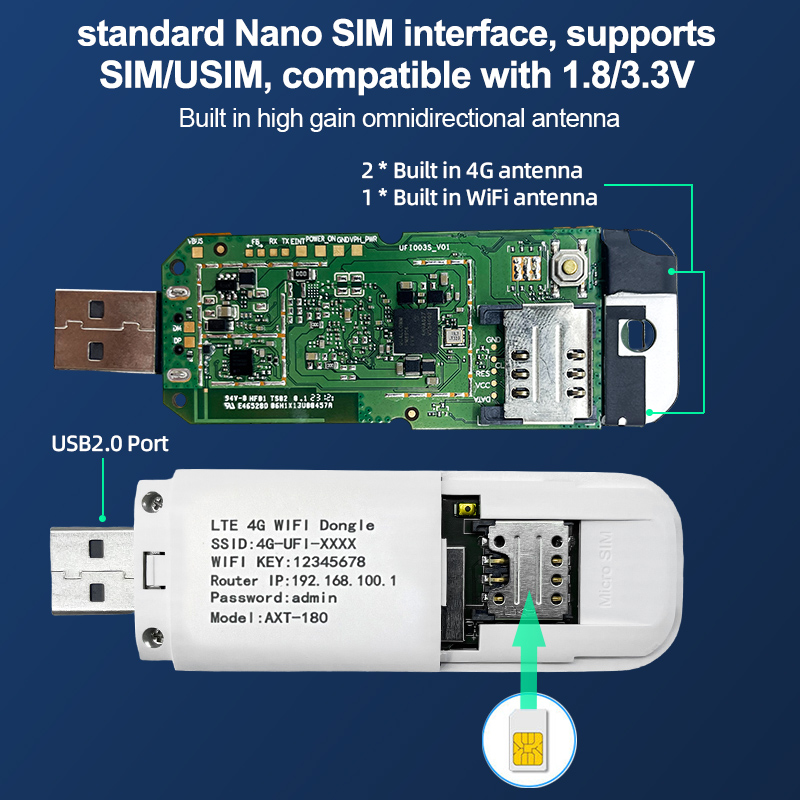

| SIM card | 1*Micro-SIM card port，Support SIM/USIM |
| Power adapter | USB A male connector 5.0V input |
| Reset | 1 |
| 天线 | 2*built-in 4G antenna
1*built-in WiFi antenna |
| CPU | 9X07 |
| 2.4G WIFI chipset | RTL8189ES,Max 150Mbps |
| FLASH/RAM | 4GB ROM |
| 512MB RAM |
3G 4G frequencies supported
| 4G | LTE CAT.4 |
| 3G/4G standard | FDD LTE
TDD-LTE WCDMA |
| 4G bands | LTE-FDD:B1/B3/B5/B7/B8/B20/B28
LTE-TDD:B38/B40/B41 WCDMA:B1/B5/B8 |
| 4G speed | LTE-FDD DL: 150Mbps, UL: 50Mbps
LTE-TDD DL: 130Mbps, UL: 35Mbps |
